Mapronix – Industrial Digital Twin in 2D & 3D
The digital twin of your factory: buildings, machines, routes, people and your entire IT infrastructure in interactive 2D and 3D — lean, fast to deploy and optimized for medium-sized enterprises.
Available on request — Turnkey installation & 3D setup included
Licensed per company and set up ready to run in your infrastructure (ERP integration is clarified individually in advance). How rollout & onboarding work ↓
Mapronix turns static floor plans into an interactive, browser-based engineering model of your company. Locate any machine, colleague or network component in seconds, walk through production halls in first-person 3D and trace live material flows across your site — on desktop and mobile without plugins.
Interactive 2D & 3D

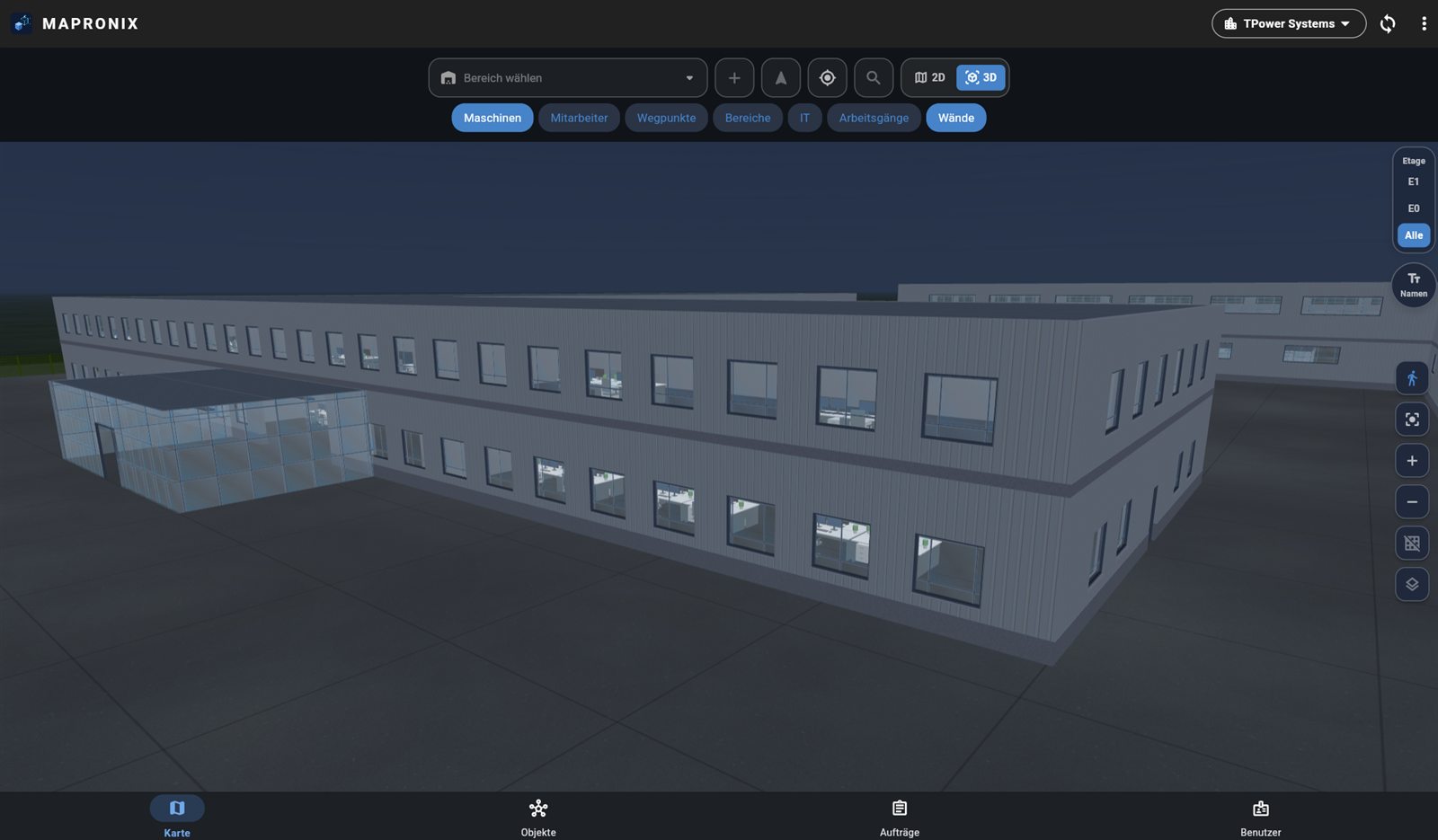

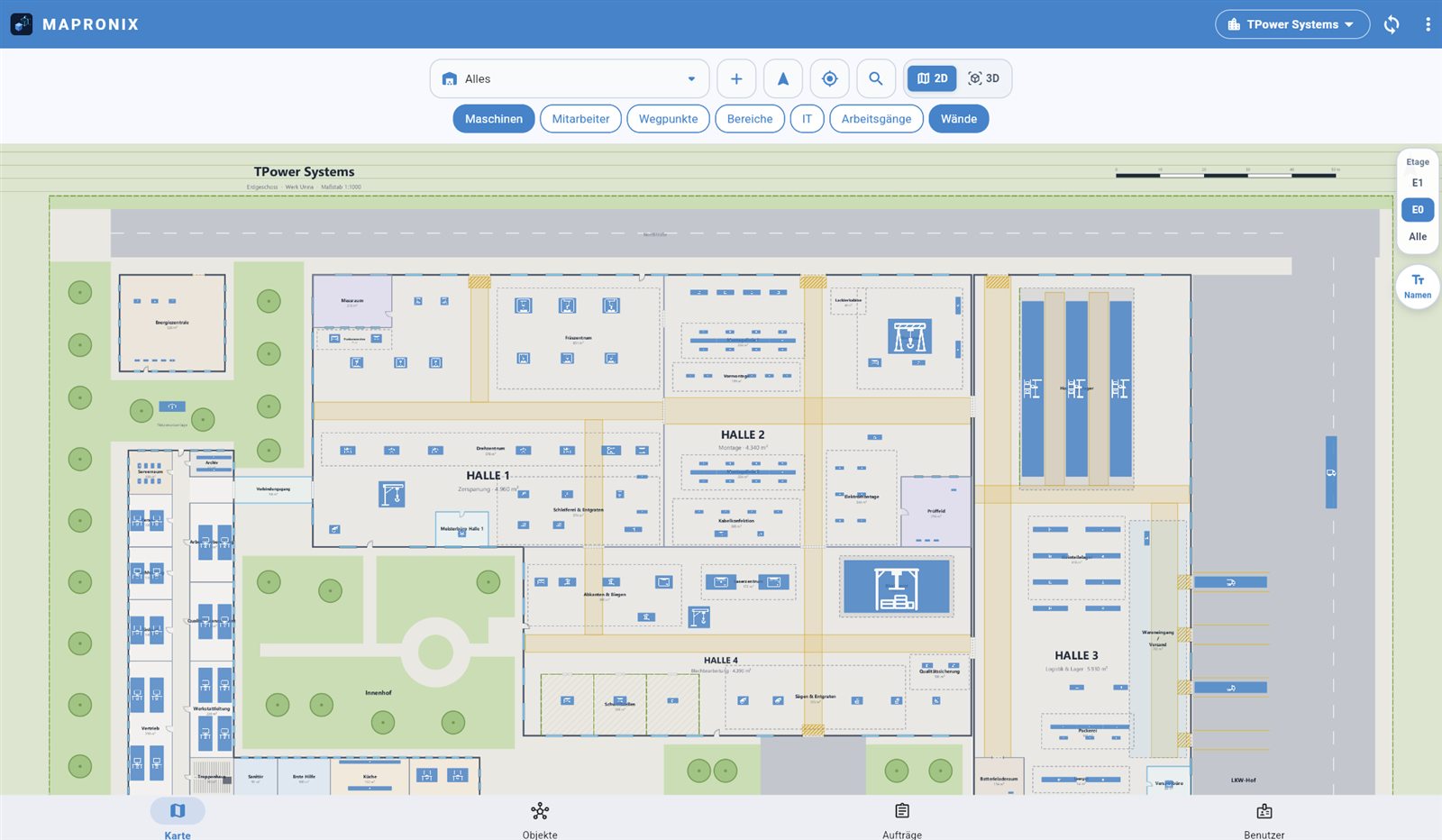

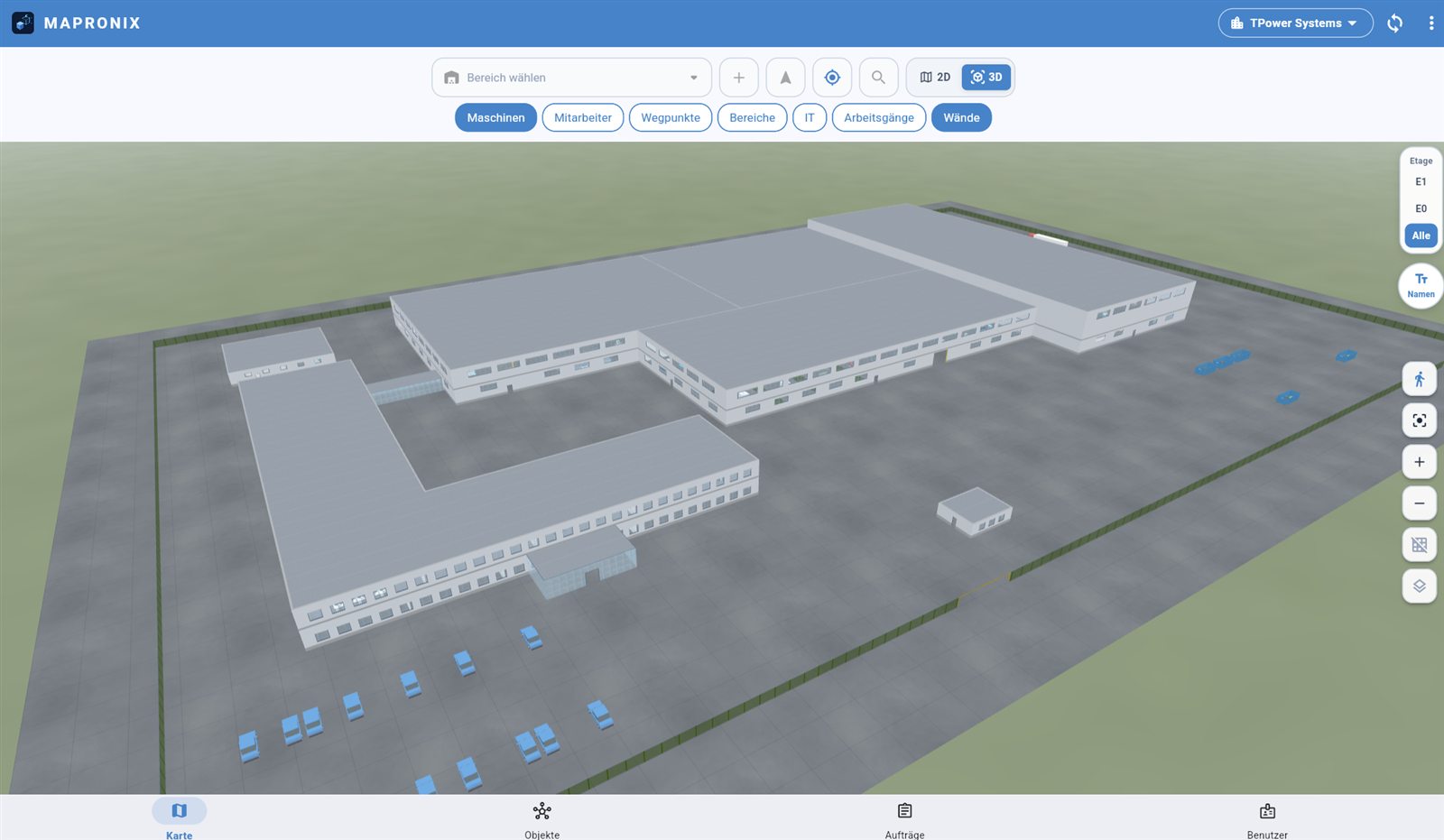

Switch seamlessly between a precise 2D floor plan and a real-time 3D model of your site, floor by floor.
First-Person Walkthrough
Navigate halls in first-person perspective with a live 2D minimap and instant object inspection.
Indoor Navigation
A waypoint routing graph calculates the shortest path to any machine, workplace or IT device with live distance guidance.
2D-to-3D Live Editor
Place machines, zones and walls on the 2D floor plan and immediately inspect their 3D model in the browser.
ERP & Material Flow
Visualize active production orders and routed material flows across workstations in 2D and 3D.
NetBox IT Twin
Synchronize switches, racks, access points and endpoints bidirectionally with NetBox at their real 3D coordinates.
Place it on the 2D floor plan. Stand in front of it in 3D seconds later.
Keeping your factory model up to date requires zero CAD expertise or coding. Add machines, gantry cranes, storage racks, rooms, walls and waypoints directly in the browser and see them render in 3D immediately.
- Draw or drag objects onto the 2D map and fine-tune width, length and rotation with meter precision

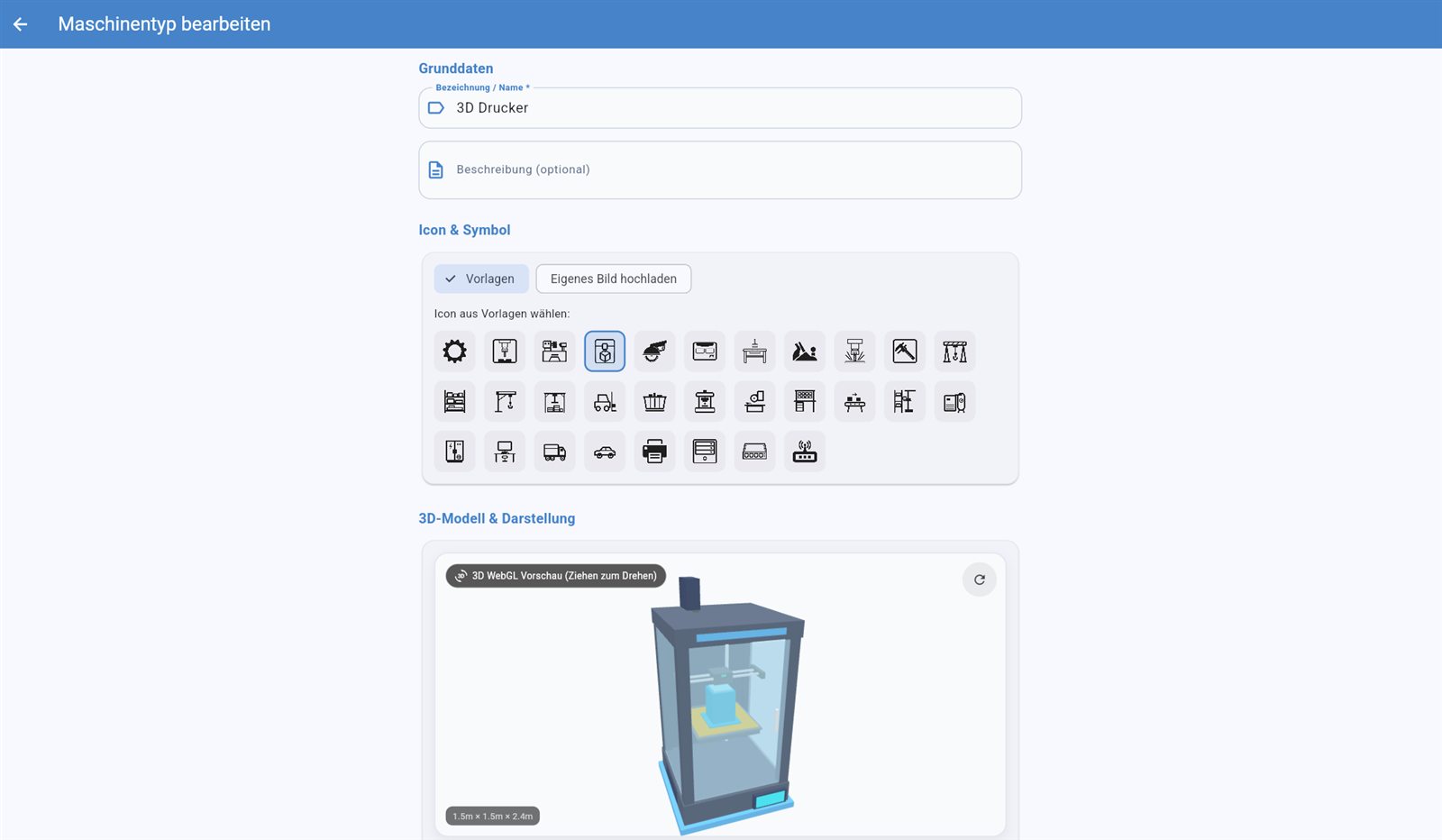

- Assign custom machine types with interactive 3D wireframe previews and GPS coordinates

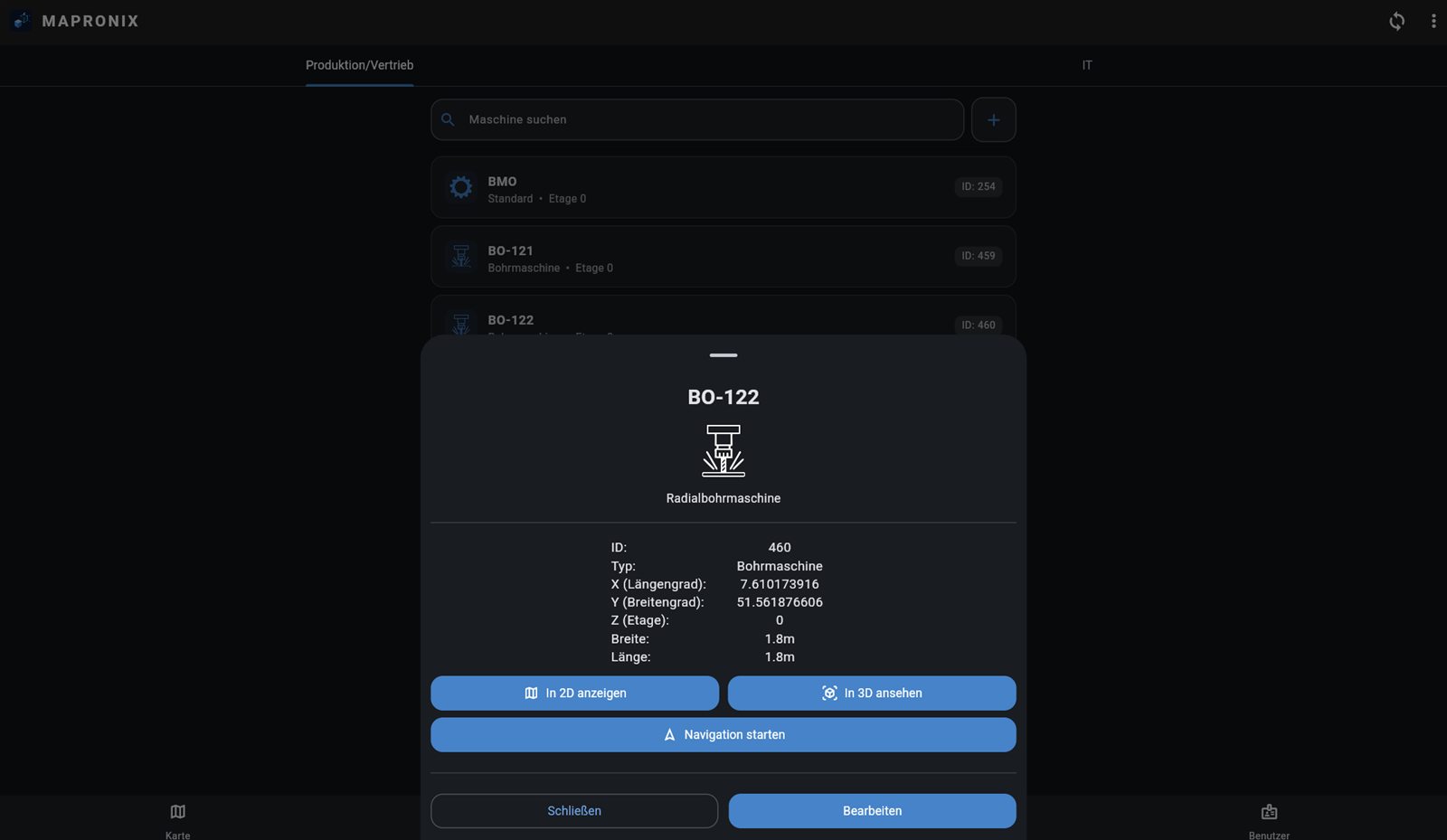

- Jump straight from the 2D object card into 3D first-person view to inspect the new layout on the shop floor
Live production orders, animated across your 3D shop floor.
Connect Mapronix to your ERP system (e.g. Infor COM) and bring production data into spatial context: current machine status is displayed directly on each workstation, and multi-step production orders flow visibly through your halls.
- Filter and combine active orders (ANR) or material numbers (MNR) to visualize every operation in sequence
- Toggle between direct air-line connections and real routed transport paths along your shop-floor waypoints
- Walk alongside 3D material flow lines in first-person view to uncover bottlenecks and optimize layouts
- Custom ERP evaluation: Because every ERP landscape differs, coupling to your specific ERP system is clarified and scoped individually in advance
Every IT & network asset at its real 3D location — powered by NetBox.
NetBox is the industry standard and open-source single source of truth for network documentation, IPAM/DCIM and server/hardware inventory. Mapronix bridges the gap between logical IT documentation and physical space by linking NetBox directly to your 2D and 3D factory twin.
1. Connect Existing NetBox Instance
Already running NetBox? Mapronix connects seamlessly via API. Devices, racks and roles sync automatically, and positions placed in the 3D twin are written straight back to NetBox.
2. Turnkey NetBox Initial Setup
No structured IT inventory yet? On request, we deliver a turnkey operational NetBox deployment on-site — including initial server, switch and network modeling in your environment.
- Switches, routers, access points, servers, patch panels, printers and DECT stations appear as 3D models at their exact physical coordinates
- Bidirectional synchronization: NetBox remains your single source of truth while Mapronix adds spatial 2D/3D visibility

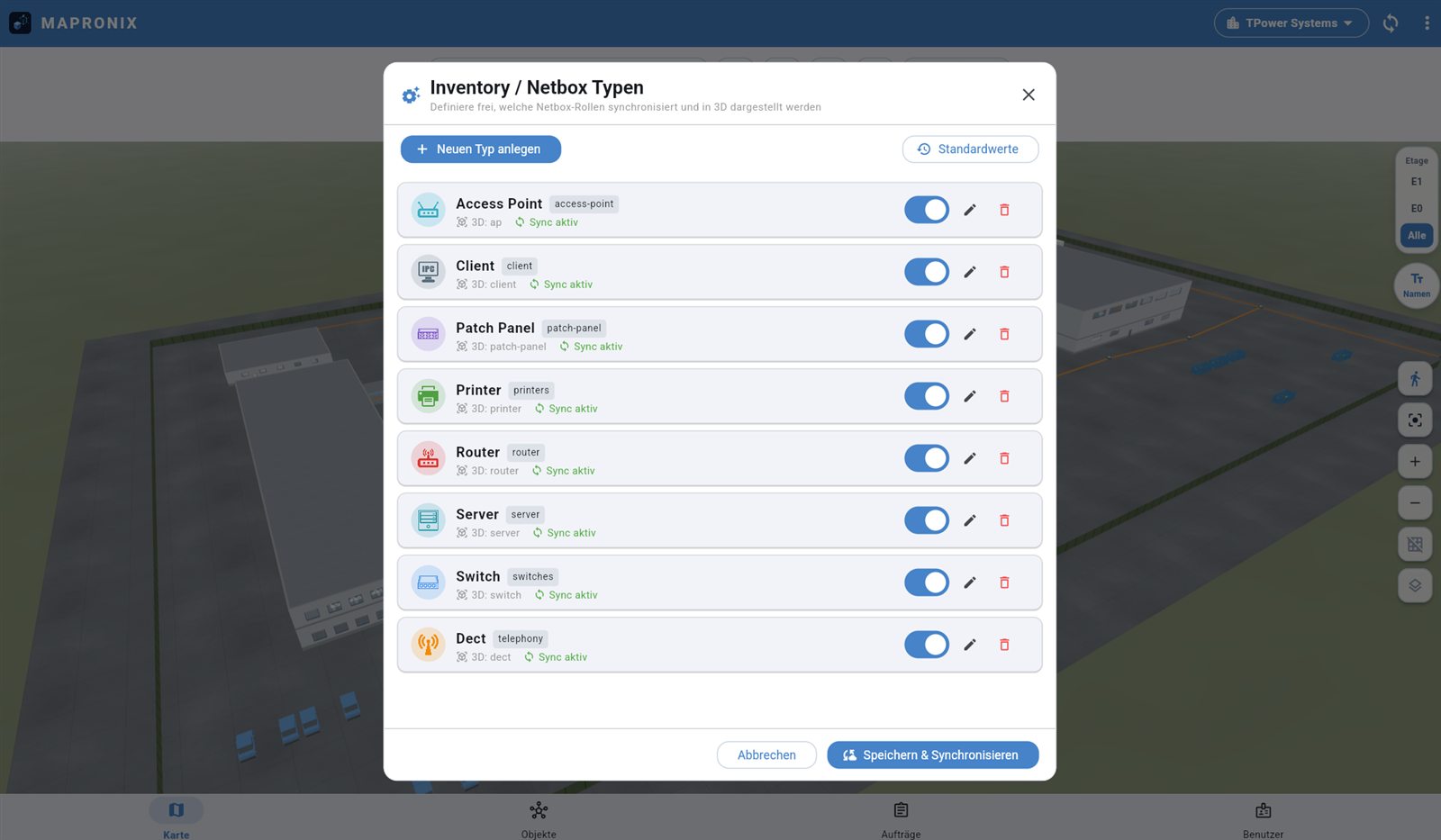

- Freely configure which NetBox device roles are synchronized and assign custom 3D representations
Detailed Interface Views Click to enlarge
How to get Mapronix
Mapronix is tailored specifically for medium-sized industrial enterprises (Mittelstand) — lean, fast to deploy, and delivered ready to run. Your team has zero implementation overhead: we handle the entire onboarding process as an operational turnkey service, from 2D plan surveying to on-premises deployment.
-
01
Consultation & Live Demo
We demonstrate Mapronix live, analyze your site layout and clarify technical requirements (including individual ERP interface scoping) in advance.
-
02
2D Plan & Map Generation
We capture your spatial layouts in a precise 2D floor plan and generate the interactive digital twin from it. Any future changes to machines, rooms, walls and routes can later be carried out independently and flexibly by your own team.
-
03
Docker On-Premises & Integration
We deploy Mapronix preferably containerized via Docker on-premises directly within your IT infrastructure. NetBox is connected (or deployed turnkey), and optional Single Sign-On and ERP connections are established.
-
04
Turnkey Handover in the Browser
Your team accesses the digital twin directly via modern web browser — zero client installations required, with ongoing support whenever you need it.
Interested in Mapronix for your company?
Purchase, installation and turnkey setup on request. Just send us a short message.
